lifting motor

Magnetic Resistance Brake Device
Precision Braking System: Ensures smooth and controlled stops
Durable Metal Construction: Built for long-lasting performance
Heat-Resistant Materials: Prevents overheating for consistent operation

Products Description:

lifting motor

As the core component of fitness equipment, the lifting motor provides reliable height and anale adiustmen functions with its intelligent design and excellent performance, helping users achieve the best exercise results, Choosing fitness eauipment eauipped with lifting motors means choosing a more intelligent,durable, and efficient way of exercising.

High QualityLinear Actuator

High Automation: The lift motor electrically adjusts the incline, offering simple operation and a high degree of automation. Wide Adjustment Range: The lift motor can adjust a wide range of inclines to meet the needs of diverse users. Good Stability: The lift motor utilizes a gear transmission mechanism for smooth transmission and low noise. Long Life: The lift motor has a long service life and is easy and low-cost to maintain. Wide Application: The lift motor is suitable for fitness equipment such as treadmills, exercise bikes, elliptical machines, stair treadmills, and bicycle platforms.

electric linear actuator

OEM and ODM available for us
All dimensions of linear motor technical parameter can be customized
All Electric Linear Actuators passed with CE and COC

Key Technical Parameter :

Technical Parameter
Motor Power (W)	60	Voltage (V)	110-220
Frequency(Hz)	50/60	Load (KG)	550
Noise (dB)	＜55	Efficiency	51%
Life(cycle)	30000	Max Speed	3.0mm/s
Protection Grade	IP30	Working Temperature	’-10℃·40℃
Control Type	Photoelectric sensors; VR; hall sensor	Certification	CQC CE UL

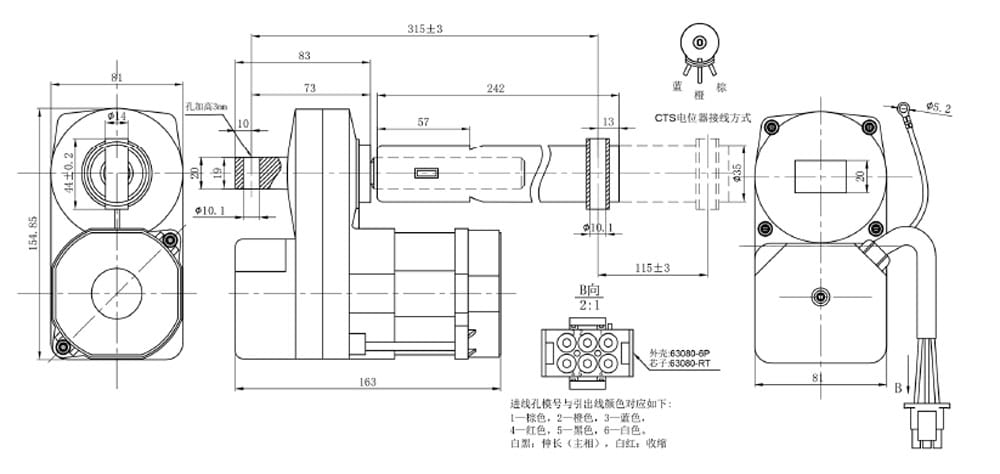

Drawing :

our service :

1.OEM and ODM available for us

2.100% inspection of each process of production

3.100% QC inspection before delivery 4.Sample manufacture and Mould Development

5.Free repair within 2 years and you only need to pay the freight

6.If you receive the goods which is defective not your problem, that we can replacement with new one for you (when you receive the goods within 5 days and you can contact with our staff)

7. After sending,we will track the products for you once every two days,until you receive the products.When you got the goods,test them, and give me a feedback.If you have any questions about the products,contact us,we will offer the solve way for you.
